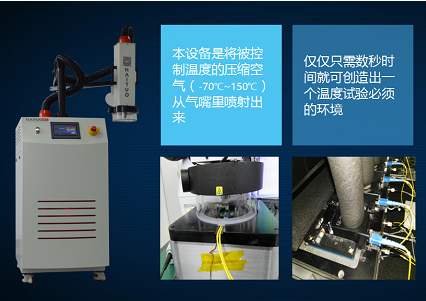

Ultra-Fast Cold and Hot Shock Test Machine With Heat Flow Meter and Sensor Quick Cooler
This equipment is suitable for temperature shock test, high and low temperature test, failure analysis and other reliability tests expecially when it comes to testing various types of semiconductor chips, flash memory Flash / EMMC, PCB circuit board IC optical communications , such as transceiver transceiver high and low temperature test, SFP optical module, electronics industry, etc.
Application
- Test components of MCMs, Modules, PCBs, assemblies and so on.
- In place of liquid nitrogen
- Validation of design
- Failure analysis
- High and low temperature impact
- Thermal fixtures
- Temperature control of the Tester Handler
Specification
| Temperature range | -7 0 ℃ ～ ＋ 220 ℃ |
| Control accuracy | ± 1.0 ℃ |
| Temperature setting and display accuracy | 0.1℃ |
| Temperature overshoot | ≤1℃ |
| Exterior size | 600 * 1200 * 890mm (W * H * D) |
| Speed of temperature change | -55 ℃ ～ + 125 ℃ , ≤10S |
| (Air outlet, with no load) | + 125 ℃ ～ -55 ℃ , ≤16S |
| Statistical airflow output | 5 ～ 20 SCFM adjustable |
| Communication and Network interface, | USB, RS484 (provide third-party communication protocol) GPIB is optional |
| Temperature sensor | T-type thermocouple |
Features:
Temperature control Switch between gas temperature and sample temperature.
Operation interface touch screen with programmable mode, fixed value mode
Status display Temperature setting and real-time display
Data storage Data files can be stored on USB sticks
PC software support labview
Data recording Data can be recorded to a file or down load to a computer
Movement flexibility with 4 swivel castors
Calibration method Manual calibration
Why Buying from us?

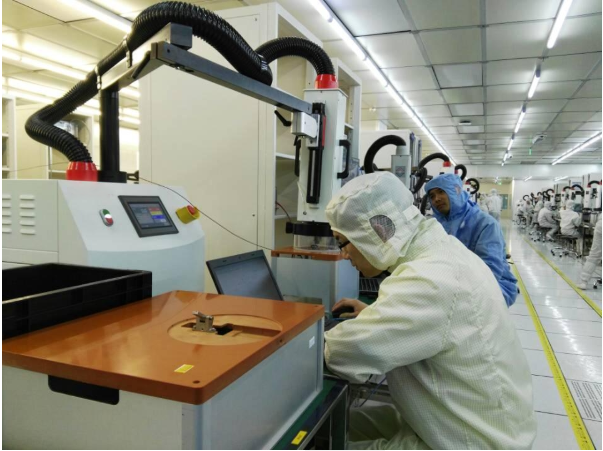

Our products have accurate high and low temperature air circulation system, can accurately control the heat and cold air, used in test components, hybrid circuits, modules, PCB and assembly. It is widely used in semiconductor manufacturers of integrated circuits (IC) and wafer development, qualification and final testing, as well as other electronic testing for automotive, defense/aerospace, energy, industrial and telecommunications markets. Specific products include temperature management systems, induction heating products, manipulator and docking hardware products, and customized interface solutions.
1) Strong function: release -80 C temperature at 20SCFM flow rate.
2) Rapidity: the temperature changes from +220 C to -65 C in 10 seconds.
3) Reliability: unique dual compressor technology to provide unmatched refrigeration capacity and longer service life.
4) Compressibility: 30% smaller overall size than other similar products.
5) Convenience: touch screen controller allows you to monitor and test
