200L Thermal Shock Test Machine , Thermal Testing Equipment Hot Cold Zone

Brand Name : MENTEK

Model Number : MTS3-200

Certification : CE

Place of Origin : China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 30 sets per month

Delivery Time : 25-35 working days after order confirmed

Packaging Details : First protected by resin fiber and PP film, then put into Strong wooden case

Temperature Range : -70°C~150°C or tailor-made

Test Space : 25 to 1000Litres

Electronic : AC220V·50HZ/380V·50HZ

Meet Test Standard : IEC, ASTM, MIL, ISO etc

Interior material : SUS 304

Refrigeration : Unit cooling mode / Dual cooling method (air-cooled)as per size of chamber and specific low temperature

Contact Now

Thermal Shock Test Chamber Reduce Risk and Save Cost When Introduce New Product

Thermal shock test reduces the risks which can occur in products due to components or processes and there is less risk involved when a new product or new technology is introduced.During the test, hermal shock causes cracking or faulting along lines of stress as a result from the conflict between uneven element expansion and compression according to relative temperature. Industries such as consumer, medical, automotive, aerospace and construction use thermal shock chamber testing to ensure the reliability of their products.

Two Zone:Hot and Cold zone

200L Thermal Shock Test Machine , Thermal Testing Equipment Hot Cold Zone

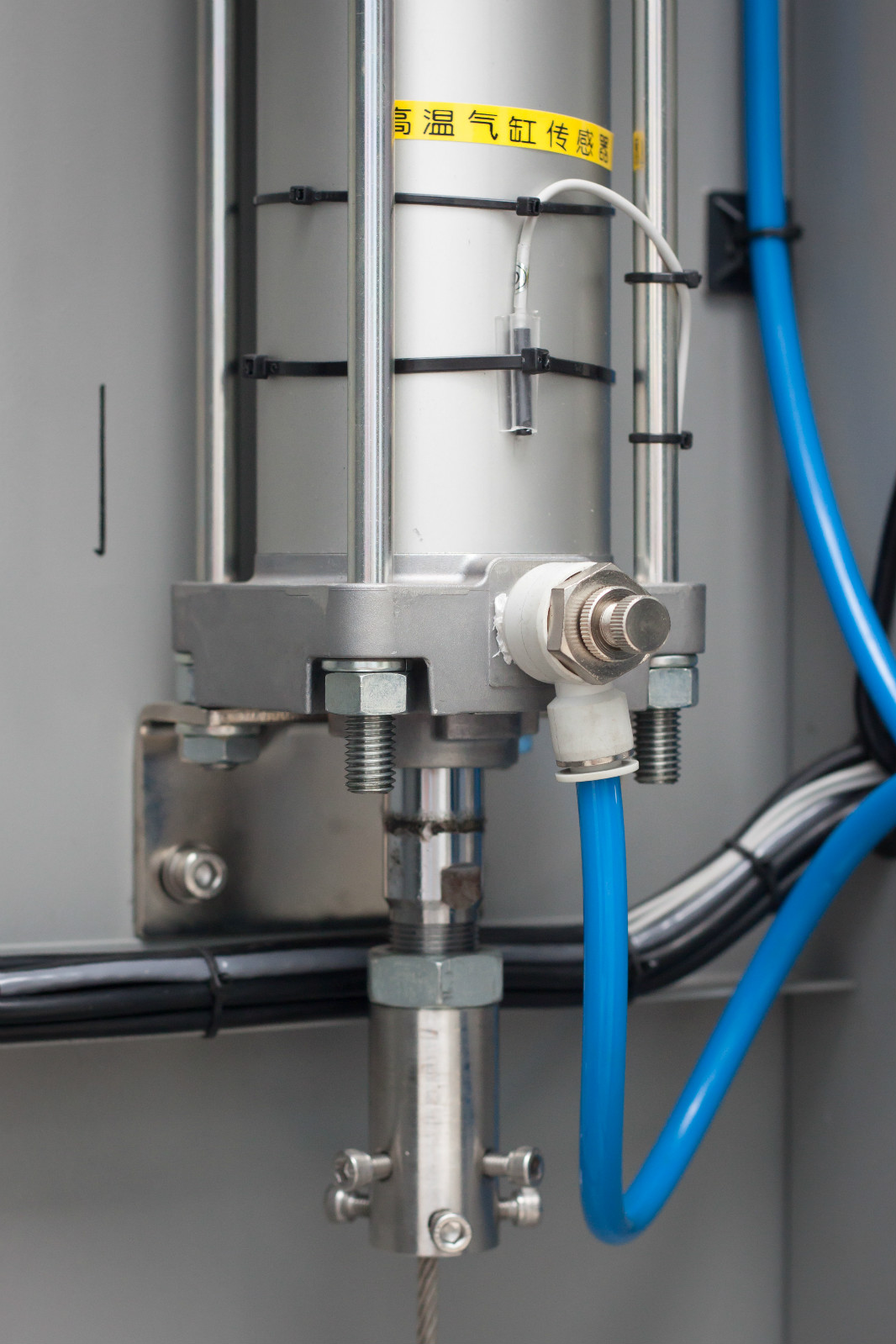

Automatic Motorized Lift Up and Down Mechanism

Application

  • Electronic parts
  • Home appliance
  • Auto parts
  • Aviation parts
  • LED lights
  • Plastics
  • Metals

Technical Sheet For Three Zone Thermal Shock Chamber

Model MTS-50 MTS-100 MTS-150 MTS-200 MTS-300
Interior Volume 50L 100L 150L 200L 300L
Interior Dimension(cm) 35*40H*35 50*40H*50 60*50H*50 65*50H*62 90*50H*67
Temp Change Rate(with load) 5℃ ～20℃/m(Standard); 30/℃/m( Liquid Netrogen)
Hot/Low Temp Range(Testing Zone) +60℃～+150℃ 　 -10℃～-65℃
Hot/ Low Temp Range(Preheat-precool Zone) +60℃～+200℃ (Pre heating zone) 0℃～-78℃ (Pre cooling zone)
Preheating Time(m) RT to 150℃ RT to 150℃ RT to 150℃ RT to 150℃ RT to 150℃
30 40 40 40 40
Precooling Time(m) -40, -55℃, -65℃ -40, -55℃, -65℃ -40, -55℃, -65℃ -40, -55℃, -65℃ -40, -55℃, -65℃
70,80,90 70,80,90 70,80,90 70,80,90 70,80,90
Power (KW) 20,21,22 21,22,23 22,23,25 28,35,45 30,40,50
Temp Fluctuation ±0.5℃
Temp Conversion Time 　 　 ≤10 seconds 　 　
Temp Recovery Time 　 　 ≤5min 　 　
Temp & Humidity Deviation ±1℃～±2℃ ±3％RH(＞75％RH);±5％RH(≤75％RH) (optional)
Standard configurations 1 Window, 1 Cable port, 1 Lamp, 4 Casters, 1 Power cable, 2 Stainless steel shelves
Standard Documentations quality certification,test report ,user operaion manual for machine & controller
Safety devices Electric leakage, fan overheat ,anti-dry ,compressor overheat & overpressure,power supply undercurrent,overheat, overcurrent, phase sequence, over-temperature protection devices
