50/60Hz Environmental Test Chamber Air Cooling 5-15°C / Minute High Efficiency

Name: 5060Hz Environmental Test Chamber Air Cooling 515C Minute High Efficiency
Brand: MENTEK
Price: 1 USD

Brand Name : MENTEK

Model Number : MHP-1000-1

Certification : CE

Place of Origin : China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 30 sets per month

Delivery Time : 25-35 working days after order confirmed

Packaging Details : First protected by resin fiber and PP film, then put into Strong wooden case

Temperature Range : -70°C~150°C

Test Space : 150 to 1500Litres

Ramp rate : 5-15°C/min

Meet Test Standard : IEC, ASTM, MIL, ISO etc

Material : #SUS 304 Stainless steel

Usage : Temperature and Humidity Test

Product name : Thermal Cycling Test Chamber

Power : 380/ 220V AC±10% 50/60Hz

Contact Now

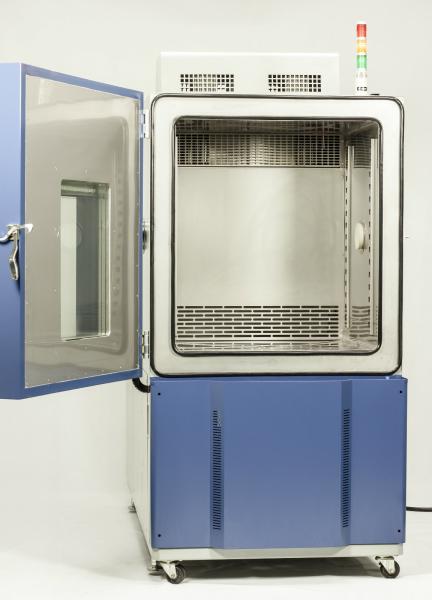

Air Cooling 5 to 15 °C / minute Rapid Change Temperature Testing Chamber

Rapid Change Temperature Testing Chamber is a type of Thermal Cycling Test Chamber which is ideally designed for improving the failure repeatability during thermal shock tests. Based on IEC International standard, a test sample temperature variation rate for Rapid Change Temperature Testing should be 15°C/minute or less, which is the biggest difference betweenRapid Change Temperature Test Chamber and Thermal Shock Test Chamber.

50/60Hz Environmental Test Chamber Air Cooling 5-15°C / Minute High Efficiency

50/60Hz Environmental Test Chamber Air Cooling 5-15°C / Minute High Efficiency ·

Technical Sheet

Model	MESS-250	MESS-500	MESS-1000	MESS-1500	Custom
Interior Volume	250L	500L	1000L	800L	Accept
Interior Dimension(cm)	7070H50	8090H70	100100H100	100150H100
Standard Load(Aluminum Ingots)	5kg	12kg	25kg	30kg
Temp Change Rate(with load)	5℃ ～20℃/m(Standard); 30/℃/m( Liquid Netrogen)
Temp Range	-70℃～+150℃			-40℃～+150℃
Temp Fluctuation	±0.3℃～±0.5℃
Temp & Humidity Deviation	±1℃～±2℃		±3％RH(＞75％RH);±5％RH(≤75％RH) (optional)
Standard configurations	1 Window, 1 Cable port, 1 Lamp, 4 Casters, 1 Power cable, 2 Stainless steel shelves
Standard Documentations	quality certification,test report ,user operaion manual for machine & controller
Safety devices	Electric leakage, fan overheat ,anti-dry ,compressor overheat & overpressure,power supply undercurrent,overheat, overcurrent, phase sequence, over-temperature protection devices

Why Select MENTEK?

1) We have professional factory management and development team. The yearly turnout are 1,500 units.We are customer-tailored solution expert in environmental chamber, provide excellent test chambers & make expert solutions for customers.We provide private custom service for each customer, and create their own brand environment test chambers.
2) Competitive Prices: Mentek offers you competitive and reasonable market price.
3) Excellent Service: We offer complete engineering and technical support, prompt emergency service, remote installation, remote maintenance services and more. We are equipped with over 20 technical and support you anywhere in time .

4) Good Material & Workmanship: Besides highly skilled workforce , we use excellent SUS stainless steel, Japan OYO series and Korea TEMI series touch screen controller, international famous brand compressor such as Bizter (Germany),Tecumseh (France) and most of the spare parts are imported with utmost quality as well.

50/60Hz Environmental Test Chamber Air Cooling 5-15°C / Minute High Efficiency

5) Highly flexible for customization: The biggest advantage with MTENK climatic chambers is that they are highly flexible for customization. Every test follows a set of procedures as per the defined test standards (ASTM, IEC, MIL, etc.) and sometimes a standard climatic chamber might not be sufficient to conduct a particular test. Our engineers understand this need of the industry well and offer the highest level of customisation like design modification or integration with other applications such as Climatic Chamber with alititude integration, Climatic Chamber with Vibration Integration(AGREE Chamber), etc.

Looking for distributors worldwild.

We have been looking for qualified overseas distributors or dealers to join our business together, and sincerely invite you to visit our company and factory in Dongguan, China. If you are interested in business for environmental chambers and have ability to install, repair test chambers with your professional technician support, please do not hesitate to contact us and join our sales team to establish friendly business relationship based on mutual benefits.
Please send us email at sales@mentekint.com ,

You can also visit our website www.mentekint.com for more information about MENTEK.
